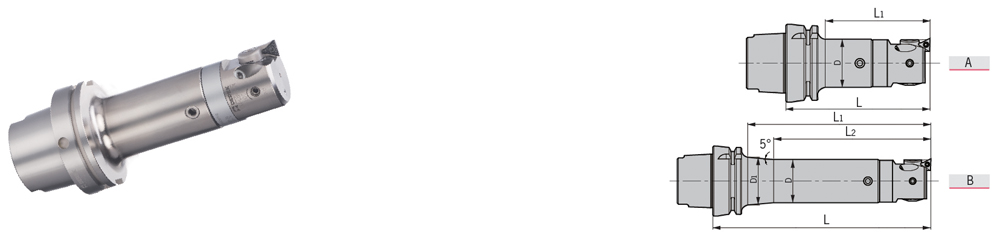

HSK-DBH粗鏜頭組件
|
組合 |
方式 |
|
| |||||||||
| 型號 |
To |
ol |
圖示 |
加工范圍 | 重量 | |||||||
|
Specifcation |
鏜頭 |
刀柄 |
鏜頭 |
Fig | D | D1 | L1 | L2 | L |
Boring Range |
Weight | |
|
|
Boring |
Adapter |
Boring Head |
|
| |||||||
|
HSK63A-
HSK100A- |
DBH2533-120 | HSK63A- | DCK2-75 | DCK2-DBH25-33 | A | 24 | - | 78.5 | - | 110.5 | 25-33 | 1.02 |
| DBH2533-175 | DCK2-130L | DCK2-DBH25-33 | B | 24 | 31 | 133.5 | 100.5 | 165.5 | 25-33 | 1.22 | ||
| DBH3242-135 | DCK3-80 | DCK3-DBH32-42 | A | 31 | - | 88 | - | 120 | 32-42 | 1.27 | ||
| DBH3242-190 | DCK3-135L | DCK3-DBH32-42 | B | 31 | 37 | 143 | 115 | 175 | 32-42 | 1.57 | ||
| DBH4055-135 | DCK4-70 | DCK4-DBH40-55 | A | 39 | - | 85 | - | 117 | 40-55 | 1.49 | ||
| DBH4055-215 | DCK4-150L | DCK4-DBH40-55 | B | 39 | 44 | 165 | 142 | 197 | 40-55 | 2.19 | ||
| DBH5270-155 | DCK5-80 | DCK5-DBH52-70 | A | 50 | - | 108.2 | - | 137 | 52-70 | 2.28 | ||
| DBH6892-185 | DCK6-100 | DCK6-DBH68-92 | A | 64 | - | 145 | - | 171 | 68-92 | 3.80 | ||
| DBH90122-200 | DCK6-100 | DCK6-DBH90-122 | A | 64 | - | 145 | - | 171 | 90-122 | 4.63 | ||
| DBH120164-181 | DCK7-110 | DCK7-DBH120-164 | A | 90 | - | 155 | - | 181 | 120-164 | 8.20 | ||
| DBH160204-181 | DCK7-110 | DCK7-DBH160-204 | A | 90 | - | 155 | - | 181 | 160-204 | 9.30 | ||
| DBH2533-125 | HSK100A- |
DCK2-80 | DCK2-DBH25-33 | A | 24 | - | 80.5 | - | 115.5 | 25-33 | 2.62 | |
| DBH2533-180 | DCK2-135L | DCK2-DBH25-33 | B | 24 | 30 | 135.5 | 100.5 | 170.5 | 25-33 | 2.72 | ||
| DBH3242-140 | DCK3-85 | DCK3-DBH32-42 | A | 31 | - | 90 | - | 125 | 32-42 | 2.92 | ||
| DBH3242-195 | DCK3-140L | DCK3-DBH32-42 | B | 31 | 35.5 | 145 | 115 | 180 | 32-42 | 3.07 | ||
| DBH4055-165 | DCK4-100 | DCK4-DBH40-55 | A | 39 | - | 110 | - | 147 | 40-55 | 3.29 | ||
| DBH4055-225 | DCK4-160L | DCK4-DBH40-55 | B | 39 | 47 | 170 | 132 | 207 | 40-55 | 3.99 | ||
| DBH5270-165 | DCK5-90 | DCK5-DBH52-70 | A | 50 | - | 110 | - | 147 | 52-70 | 4.38 | ||
| DBH5270-285 | DCK5-210L | DCK5-DBH52-70 | B | 50 | 61 | 230 | 177 | 267 | 52-70 | 5.68 | ||
| DBH6892-170 | DCK6-85 | DCK6-DBH68-92 | A | 64 | - | 121 | - | 156 | 68-92 | 5.80 | ||
| DBH6892-385 | DCK6-300L | DCK6-DBH68-92 | B | 64 | 80 | 338 | 251 | 371 | 68-92 | 8.70 | ||
| DBH90122-185 | DCK6-85 | DCK6-DBH90-122 | A | 64 | - | 121 | - | 156 | 90-122 | 6.63 | ||
| DBH90122-400 | DCK6-300L | DCK6-DBH90-122 | B | 64 | 80 | 338 | 251 | 371 | 90-122 | 9.53 | ||
| DBH120164-196 | DCK7-110 | DCK7-DBH120-164 | A | 64 | - | 161 | - | 196 | 120-164 | 9.92 | ||
